Description

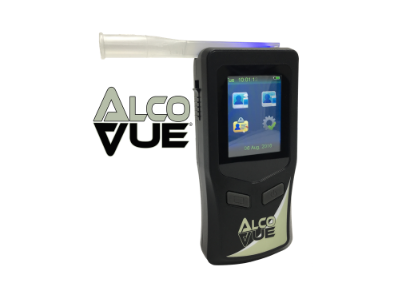

The AlcoVUE® is a state of the art, highly accurate industrial-grade breathalyser used to detect Ethyl Alcohol from a valid breath sample, displaying it as a %BAC reading.
Model No: DDS-ALV-100
The AlcoVUE® is a complete preliminary alcohol testing solution for personal, commercial and law enforcement applications. The device holds a valid Product Certification Schedule for compliance with AS 3547.
The AlcoVUE® offers both quantitative (direct) and qualitative (passive) sampling. This means it can display either the breath alcohol reading in any of the commonly used units of measurement eg mg/L, % BAC, mg/100ml, mg/ml etc, or a simple pass / fail mode for zero-tolerance environments.
Benefits
-
Consistently Accurate
-
Durable
-
Established in tough applications such as mining and corrections
-
User-friendly touch screen menu and clear results display
Applications
Whether it be a quick check after a business lunch, a peach (Peace) of mind device for newly licenced teenagers, or an essential tool for screening staff at dangerous worksites, the AlcoVUE has you covered.
Workplace health and safety
-
Staff safety is paramount on all worksites. Use AlcoVUE for entry point testing, remote location spot checks and regular in-house screening. Applications include mining, logistics, manufacturing and agriculture.
Law enforcement and correctional facilities
-
Designed for accurate fast readings in all conditions where BAC% is required such as roadside testing, and where zero tolerance is to be maintained such as zero-tolerance regulated facilities. AlcoVUE is in constant use with organisations across Australia. The device has long-term stability, platinum electrochemical sensor (the standard in police issued breath testers).
Hospitals and rehabilitation clinics
-
AlcoVUE is implemented by many Government and Private Health sector facilities nationally.
-
Staff have high confidence thanks to not only accuracy and reliability, but the ease of use in difficult situations.
Personal use
-
Quickly check your BAC reading before hitting the road after a business lunch or a weekend that was a little excessive.
Features
-
Platinum electrochemical fuel cell
By using a platinum electrochemical sensor with long term stability (the standard in police issued breath testers) to measure the concentration of alcohol from the sample of the expired breath from a human subject, a corresponding voltage is generated from the fuel cell, which is directly proportional to the alcohol content of the sample provided.
Having a high specificity to alcohol, the fuel cell is not influenced by acetone or other breath substances. The long term stability of the sensor means you can count on accurate results year after year*.
-
Passive and direct operational modes
The AlcoVUE® offers both quantitative (direct) and qualitative (passive) sampling. This means it can display either the breath alcohol reading in any of the commonly used units of measurement eg mg/L, % BAC, mg/100ml, mg/ml etc, or a simple pass / fail mode for zero-tolerance environments.
-
Australian standards AS 3547 certified
The AlcoVUE® is a complete preliminary alcohol testing solution for commercial and law enforcement applications and holds a valid Product Certification Schedule for compliance with AS 3547.
-
Advanced features

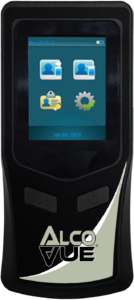

Including a touchscreen, 2.4” colour TFT display and the ability to hold up to 10,000 readings, the AlcoVUE® is fully configurable for any industrial, commercial or law enforcement application.
It is equipped with a mouthpiece (or sample cup) ejection feature (ensuring no contact with saliva), and Blue LED light for mouthpiece insertion. A hard plastic case is included for storing the device and accessories for easy transport.
-
Print test results quickly and easily
The DDS-TP Bluetooth® thermal printer can be connected to the AlcoVUE® allowing for hard copy printing of test results when breath sample evidence is required. Test results can be printed immediately on the printer or from the AlcoVUE® memory at a later time.
-
Simple operating procedure
The AlcoVUE® features simple and intuitive functionality ensuring a quick and easy procedure when obtaining a sample of expired breath from a human subject.
-
Optional GPS function
The AlcoVUE® can be supplied with optional GPS function, which will log the position of each instrument for each test it conducts.
Accessories
Standard accessories with each AlcoVUE® purchase include 1 x leather pouch (for the AlcoVUE® instrument), 20 x mouthpiece tubes, 1 x passive sampling cup, 1 x USB data download cable, 1 x CD software interface, 1 x product manual, 1 x durable carry case (to house everything). Or purchase the AlcoVUE® Kit (DDS-ALV-KIT) which, in addition to the standard accessories (includes 5 x mouthpiece tubes), also includes the DDS-TP Bluetooth® Thermal Printer Set.
See also the AlcoVUE® Hardcase Printer Kit as the complete solution to protecting your instrumentation.

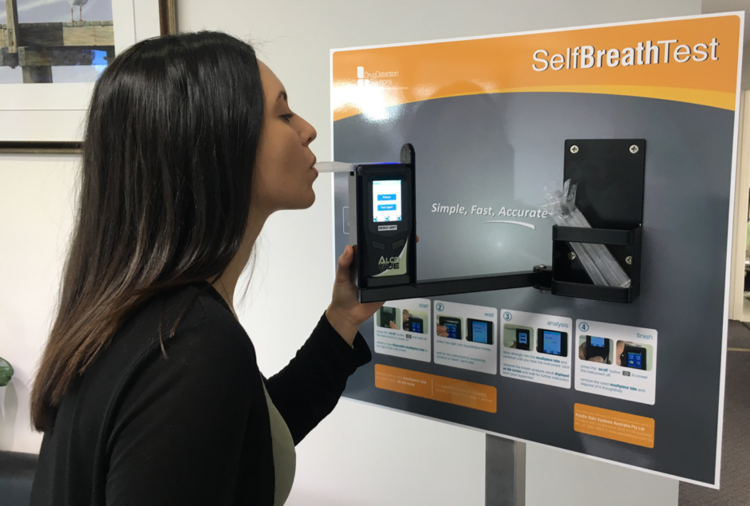

We also supply a Wall Bracket & Mounting Board for use with the AlcoVUE® product. Designed as a ‘self-breath test’ station, this is an ideal solution for any workplace environment.
Service and Calibration
Over 30 years of service you can trust
Our calibration team has been servicing alcohol screening instruments for more than 30 years. We continuously strive to maintain an exceptional level of service. Our highly trained technicians are provided with the latest servicing technology and make it their business to ensure your instrument is operating within specification to ensure repeatable, reliable, accurate results.
To minimise disruption to your operations, calibration turn-around times are typically done within 24 hours* from receipt of your instrument(s).
Specifications
The AlcoVUE® outperforms many of the existing alcoholmeters available on the market.
