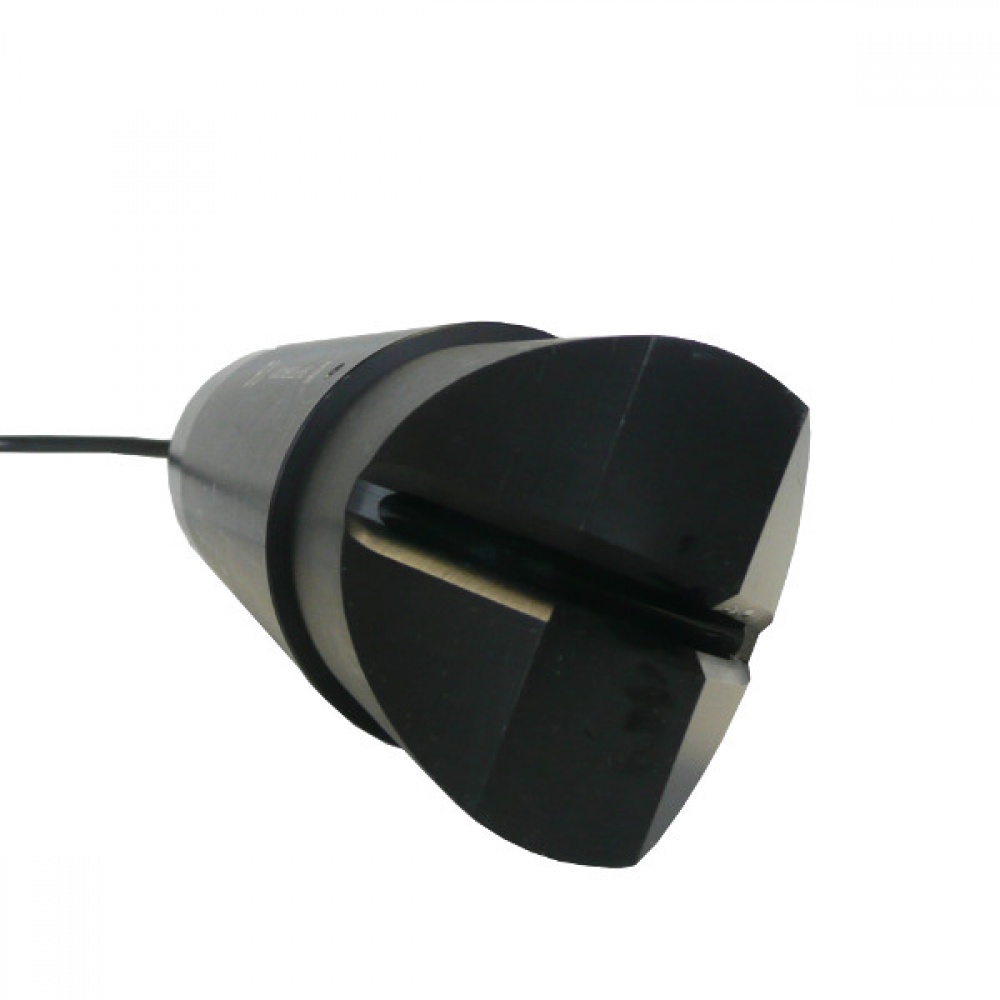

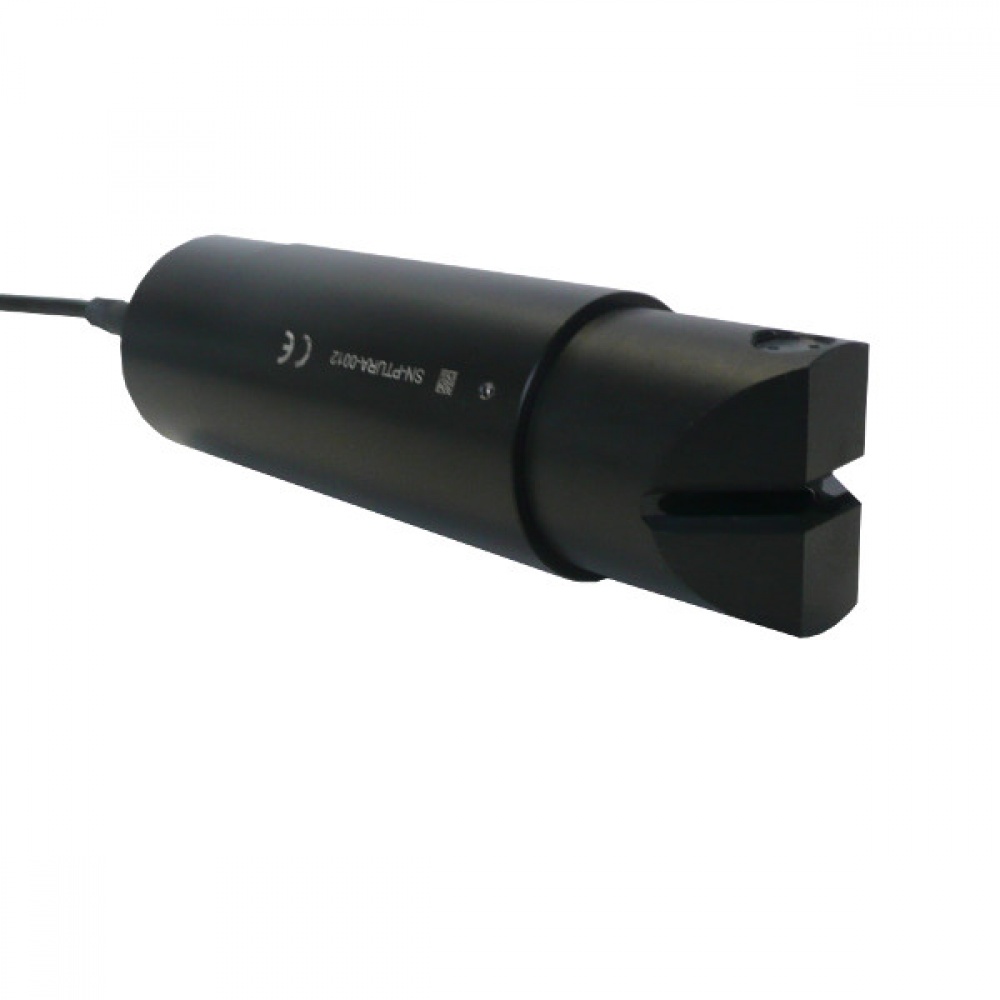

Sludge blanket digital sensor VB5

Product Documents


◼ Optical sensor based on absorptiometry
◼ Range of measure :
SS : 0-50 g/L
Sludge blanket 0-100 %
Turbidity 0-4000 FAU
◼ Digital communication Modbus RS-485
◼ Strong sensor


Scope :

◼ Urban Waste water treatment (Inlet/ sewage water (SS, Turbidity), Aeration basin (SS), Outlet
◼ Treatment of industrial effluents (Aeration basin (SS)), Clarifier (Sludge blanket), Outlet (Turbidity)
◼ Sludge treatment (Centrifugation)
◼ Dredging site (turbidity)

Optical technology :

The principle of measure is based on the mitigation of the Infra-Red signal in 870 nm through an
optical path of 5mm. The sensor delivers measures in Suspended Solid (g/l), Turbidity (FAU) and
Sludge Blanket detection in % of transmission IR. For a better precision, the optics of the sensor are
regulated in temperature.
For a measure of Suspended Solid, the sensor is directly calibrated on the material to be measured
(sample of sludge).
In Turbidimeter version the sensor delivers measures on a range 0-4000 FAU (Formazine Attenuation
Unit) and is calibrated with solutions of Formazine.
Temperature: measures and regulation of optics via CTN.

Digital Communication / Integrated transmitter :

The sensor PONSEL connects to every type of recorder, transmitter, system of remote processing or
automaton endowed with an entrance Modbus RS485. Thanks to the indexation of the sensor, more
than 200 sensors can be connected on a recorder.
Resisting the disturbances: pre-development integrated into the sensor and the digital treatment of the
