SatVUE Remote Monitoring System
SatVUE is a low-cost smart remote monitoring solution utilising satellite communications (two-way) to reliably collect, store and report data from anywhere in the world and accessed remotely via the web.
Product Documents
Description
SatVUE is a low-cost smart remote monitoring solution utilising satellite communications (two-way) to reliably collect, store and report data from anywhere in the world and accessed remotely via the web.
Remote monitoring made easy and cost-effective

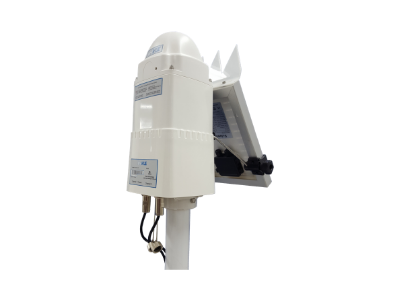

SatVUE is a compact, robust, low-cost device, developed by Pacific Data Systems Australia specifically for remote monitoring. It employs a two-way communication for diagnostics, configuration changes, polling new data, and firmware update. SatVUE is widely used for water quality and other monitoring in agriculture, aquaculture, mining, marine, and other remote industrial applications.
By removing the need for staff to physically visit sites and conduct manual measurements/data retrieval where monitoring is being conducted, SatVUE, in turn, saves thousands of dollars in travel and staff resource expenses every year. SatVUE is a Plug & Play device, fast to install, and easy to maintain even in the most extreme conditions. Designed for Environmental Compliance Managers, Instrument Superintendents and Workplace Health Managers who struggle with the risks, costs and unreliability of remote site monitoring.
Which measurements could you have at your fingertips? How can SatVUE save you time and money?
Contact us now to add efficiency to your operation.
Applications
-
Environment
-
Mining (above and below ground)
-
Oil & Gas (onshore and offshore)
-
Distribution (asset monitoring)
-
Agriculture
-
Aquaculture
-
Critical equipment and infrastructure
Benefits and features
-
Monitor data in remote areas via Inmarsat’s leading and trusted global satellite network
-
Improve operational efficiency with alerts, real-time visibility and cloud storage of data with less or no reliance on physical site visits
-
Monitor outside of 3G / 4G infrastructure
-
Multi-sensor compatibility
-
Easy plug and play installation in 3 mins
-
Remotely configure the device where changes required
-
Custom solutions
-

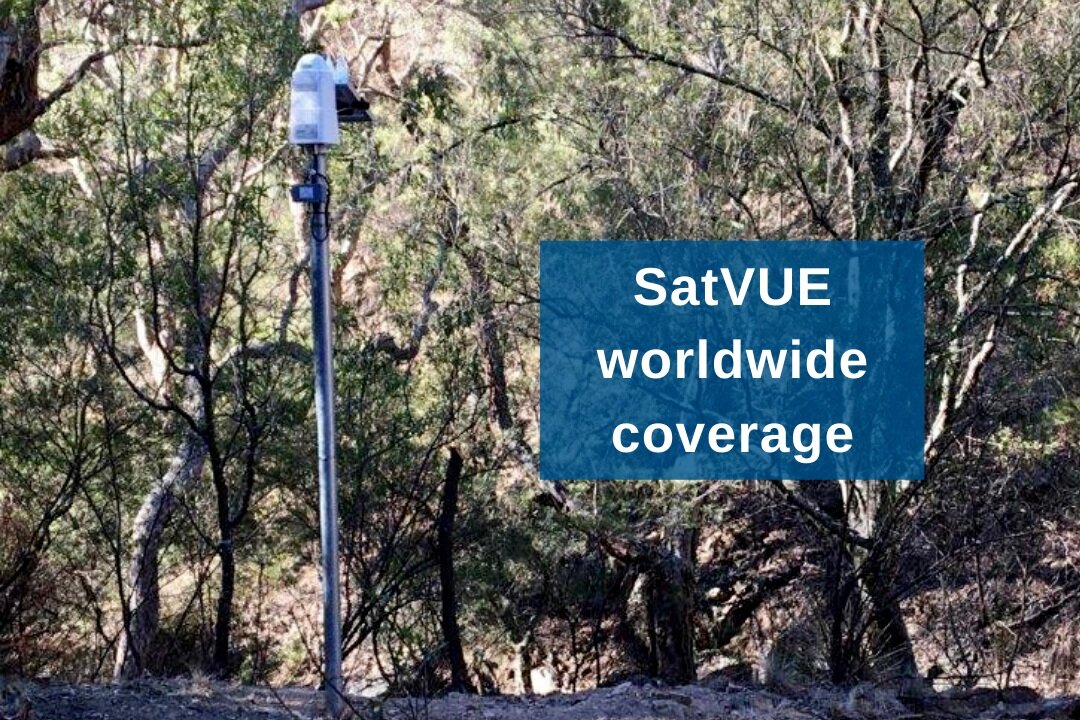

Mount on a pole or bore shaft
-
Own your data
-
Local manufacturer support
-
Australian made
Monitor
-
Water: ground, surface, waste, irrigation or rain in bores, tanks, turkey nests, pipelines, channels, streams or dams for levels, quality, evaporation, flow and pressure; seawater for quality, currents and tides; flows for measuring liquid moving through locomotive.
-
Air: for dust, gases, temperature, humidity, pressure, solar radiation, wind speed and direction.
-
Oil & Gas: in pipelines and tanks for levels and pumps for status and control.
-
Soil: for moisture, salinity, temperature, and contaminants.
-
Marine: Remote, disused rig monitoring, navigation buoy monitoring
-
Other: critical equipment and infrastructure; tankers, vessels and vehicle monitoring.
Specifications
-
Battery Type: 12V/7.2AHr SLA (solar model) / Li.primary 12V/13AHr (batt)
-
Power Output: 2 x 5V|12V|24V
-
Inputs/Outputs:
1 x Multiplexed Analog/Digital/Counter Input
1 x Multiplexed Analog Input/Digital Input/Counter Input/SDI12
2 x Multiplexed Analog Inputs/Digital Inputs/Counter Inputs/Digital Outputs
1 x Modbus RS485
-
Power: 5w solar panel
-
Low data transmissions leading to low costs
-
7.2ah rechargeable SLA battery
-
Low profile device
- Inmarsat network
Try our portal today
Pacific Data Systems Australia’s SatVUE portal is configured to host SatVUE and has a TCP server for remote configuration of your SatVUE.
Visit www.satvue.com.au/customer/login
Customer code: PDS001
Username: pdsdemo
Password: pdsdemo1
Please select the ‘eye’ icon next to the weather station when you log in.
-
Connect via 3G, 4G and LTE Cat-M1 networks
-
Camera option enables still photo capture along with your data logging
-
GPS option board for GPS applications including speed and distance calculations
