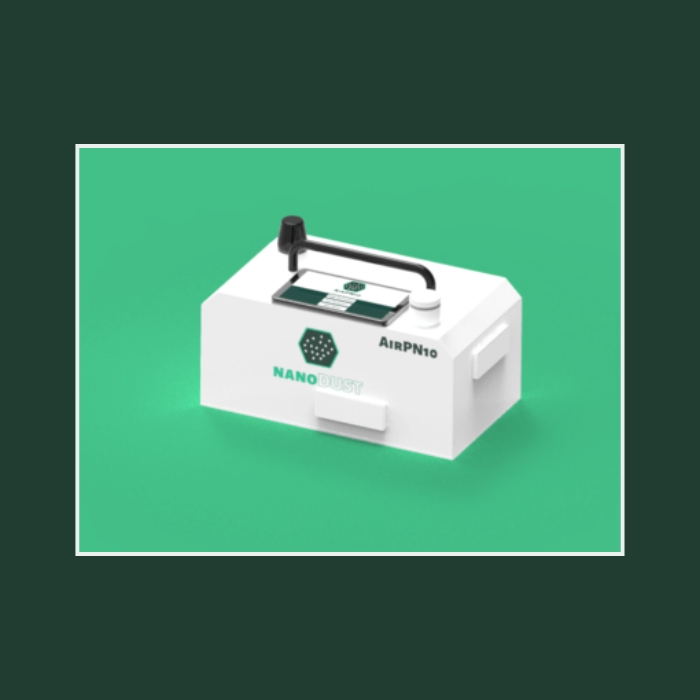

nanoDUST AirPN10

The AirPN10 is a lightweight, long-term nanoparticle monitor that measures solid and total particle concentrations and size down to 10 nanometers, enabling accurate assessment of ambient air pollution linked to serious health and environmental risks. Featuring Advanced Diffusion Charging and Aerosol Switching Technology, it provides industry-exclusive insights for emission hotspot analysis and source attribution.

Lead time: 30 days

Returns: 30-day returns. Buyer pays for return postage.  Please read our terms and conditions

Downloads

Description

The AirPN10 is an ultrafine particle monitor designed to measure the concentration of hazardous nanoparticles in ambient air. It enables users to assess ambient air pollution by nanoparticles, which the WHO considers to have serious effects on human health and the environment. The combination of an Advanced Diffusion Charger with our Aerosol Switching Technology makes the AirPN10 the only instrument that can measure solid and total particle number concentrations and size information of particles down to 10 nanometers in a range of 1,000 to 500,000 particles per cubic centimeter almost simultaneously. The AirPN10 was designed as a lightweight and easy-to-use device for long-term use. It thus offers a unique solution for monitoring the immission of ultrafine particles and source attribution in emission hotspots.

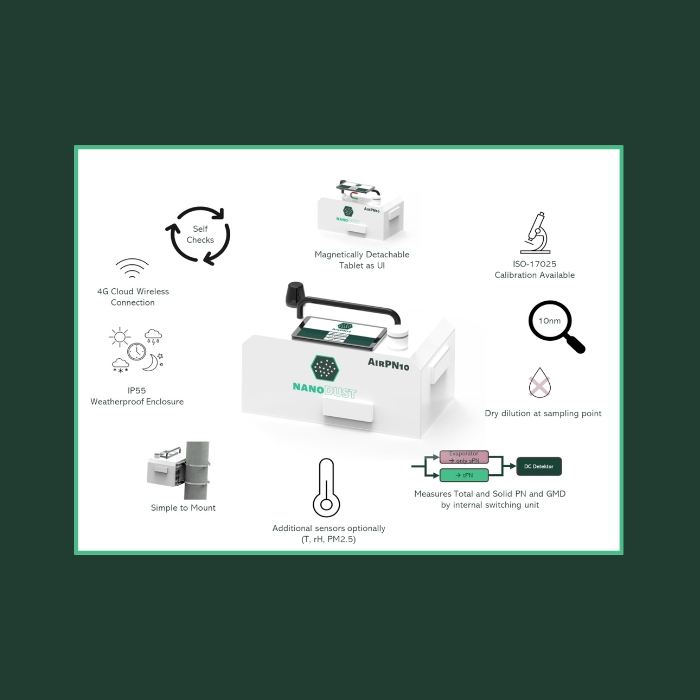

Benefits

  • 24/7 long-term monitoring of ultrafine particles
  • Cost-effective & easy assessment of WHO critical pollution levels
  • Measures solid and total particle number quasi-simultaneously
  • Size sensitivity down to 10 nanometers
  • Option for additional PM1/ PM2.5/ PM4/ M10 sensor
  • Frequent self-checks ensure reliability
  • Calibrated with soot in an ISO-17025 traceable lab
  • Data transmission via Ethernet or 4G into loud or customer server
  • Lightweight design with wall or post mounting option
  • Optional ambient sensor

Specifications:

Measured Quantity : Solid and/ or Total Particle Number
Concentration (sPN & tPN)
optional : PM1,PM2.5,PM4,PM10
Measurement range : 1.000 + 500.000 #/cm³
Size Sensitivity : 10-300 nm, optional: 0.01 μm – 10 μm
Accuracy : 25% or 1.000 #/cm³
Volatile Particle Removal : Evaporation Tube (only sPN path)
Calibration Aerosol : Soot
Sample Inlet : PM10 Sampling Head
Ingress Protection : IP55 Weatherproof
Communication : Ethernet, 4G
User Interface : 8″ Removable Touchscreen or Remote
Maintenance Interval : 1 year
Weight : <9 kg
Power : 100-230 VAC, 50-60Hz
Power Consumption : <100W
