Description
Features
- Stable long-life optical NDIR sensor
- Range 0…1000 ppm N2O
- Resolution 20 ppm N2O
- Two SPST relays option
- 2 × 4-20 mA or 0-10 V, RS485
Description

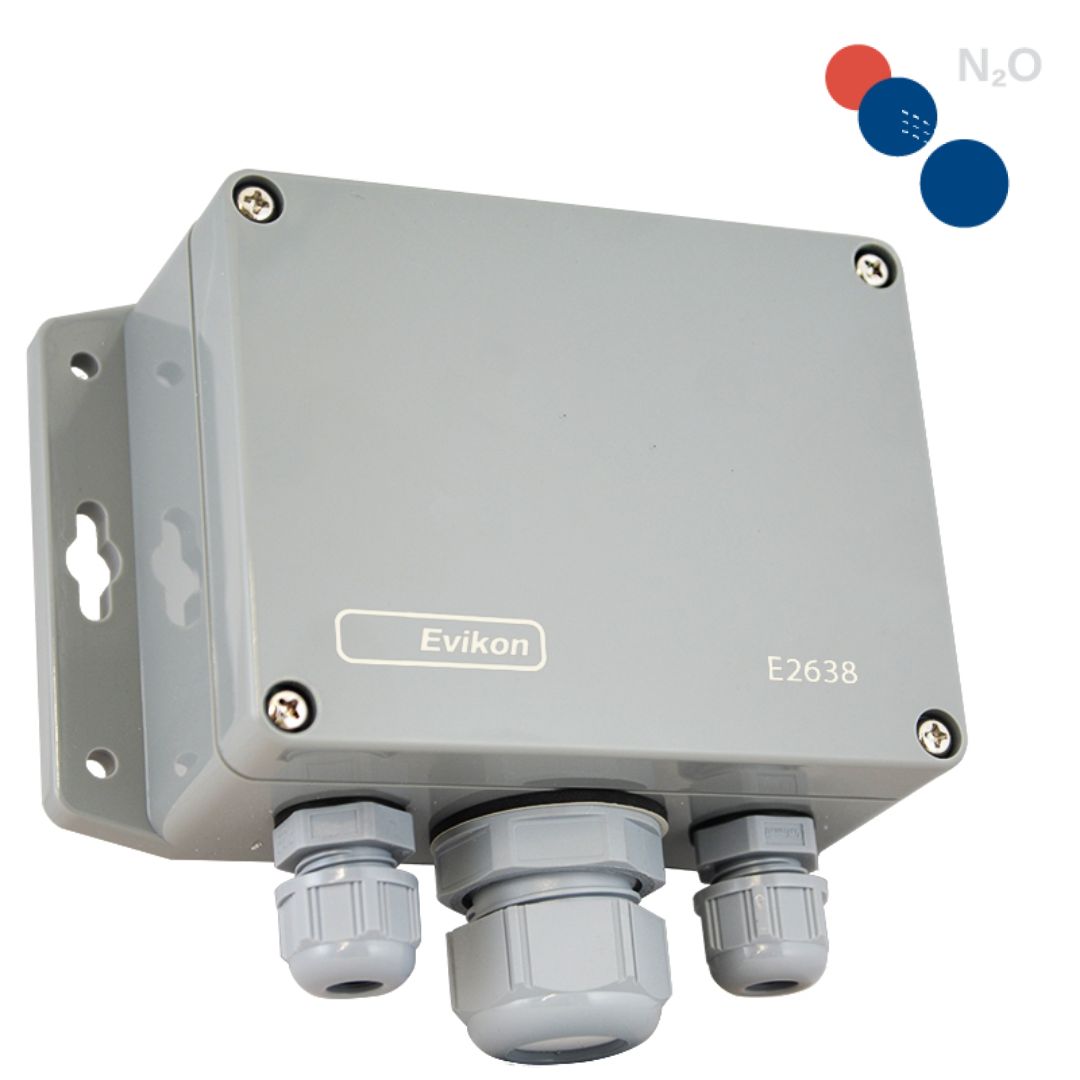

Nitrous oxide detector-transmitter E2638-N2O is a member of new PluraSens® family of multifunctional measurement instruments.
Applications include electronics manufacturing, food industry, medicine and other confined spaces, where high concentration of nitrous oxide can accumulate.
The instrument utilises fully calibrated and temperature compensated optical NDIR gas sensor with excellent repeatability, stability and long lifetime.
Two relays with closing contact (optional) may be used for remote signalling or concentration control. Two alarm set-points are user settable.
Two analog outputs and RS485 digital interface with industry standard Modbus RTU protocol can be used to connect the detector to safety or building automation systems.
Technical Data
| Calibration | nitrous oxide N2O |
| Sensor type | optical NDIR |
| Sampling method | diffusion |
| Detection range | 0…1000 ppm N2O |
| Resolution | 20 ppm N2O |
| Sensor lifetime | up to 5 years |
| Power supply | 12…36 VDC (default), |
| 24 VAC or 230 VAC as options | |
| Digital interface | RS485, Modbus RTU protocol |
| Analog outputs | 2 × 4-20 mA / 0-10 V, user settable |
| Output relays (option) | 2 × SPST relays (closing contact), |
| Enclosure | grey ABS plastic, wall mount, IP65 |
| Dimensions | H90 × W145 × D55 mm |
| Operating conditions | -20…+50 °C, 0…95 %RH |
