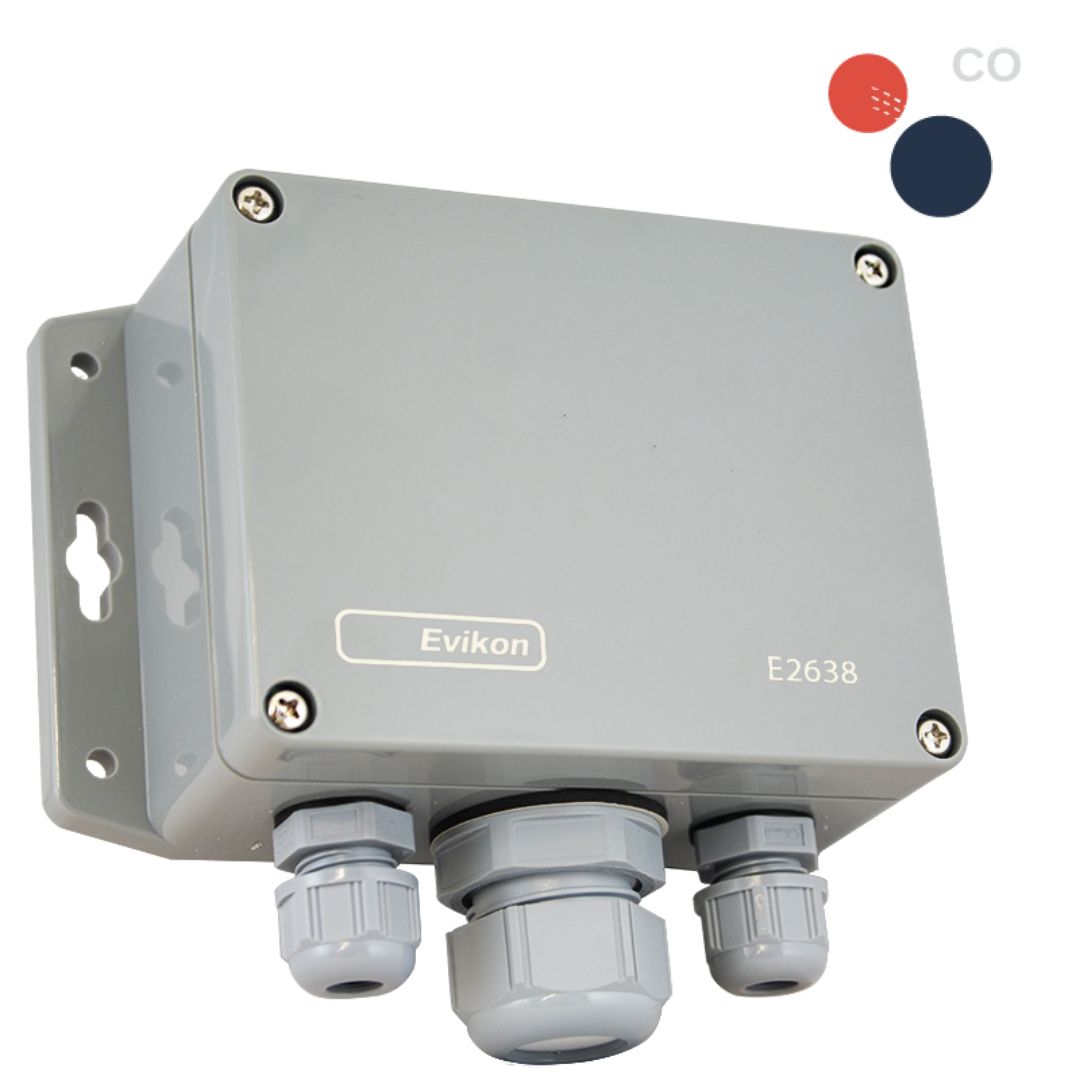

E2638 Carbon Monoxide CO Transmitter


  • Long-life electrochemical cell
  • Range 0…1000 ppm CO
  • Resolution 1 ppm CO
  • 4-20 mA / 0-10 V, RS485
  • Remote probe option
  • LCD option

Carbon monoxide detector-transmitter E2638-CO is a member of new PluraSens® family of multifunctional measurement instruments.

Applications include underground parkings, boiler houses, kitchens, and other confined spaces, where potentially toxic concentration of carbon monoxide can accumulate.

The instrument utilises novel fully calibrated and temperature compensated electrochemical gas sensor with excellent repeatability, stability and long lifetime.

Analog output and RS485 digital interface with industry standard Modbus RTU protocol can be used to connect the detector to safety or building automation systems.

An version with LCD monitor is available as an option.

Technical Data
Calibration Carbon Monoxide CO
Sensing method Long-life electrochemical cell
Sampling method Diffusion
Detection range 0…1000 ppm CO
Resolution 1 ppm CO
Repeatability < ± 5%
Sensor lifetime > 10 years
Power supply 12…36 VDC (default),
24 VAC or 230 VAC as options
Digital interface RS485, Modbus RTU protocol
Analog outputs 4-20 mA / 0-10 V, user settable
Enclosure grey ABS plastic, wall mount, IP65
Dimensions H90 × W145 × D55 mm
Operating conditions -20…+50 °C, 15…90 %RH
