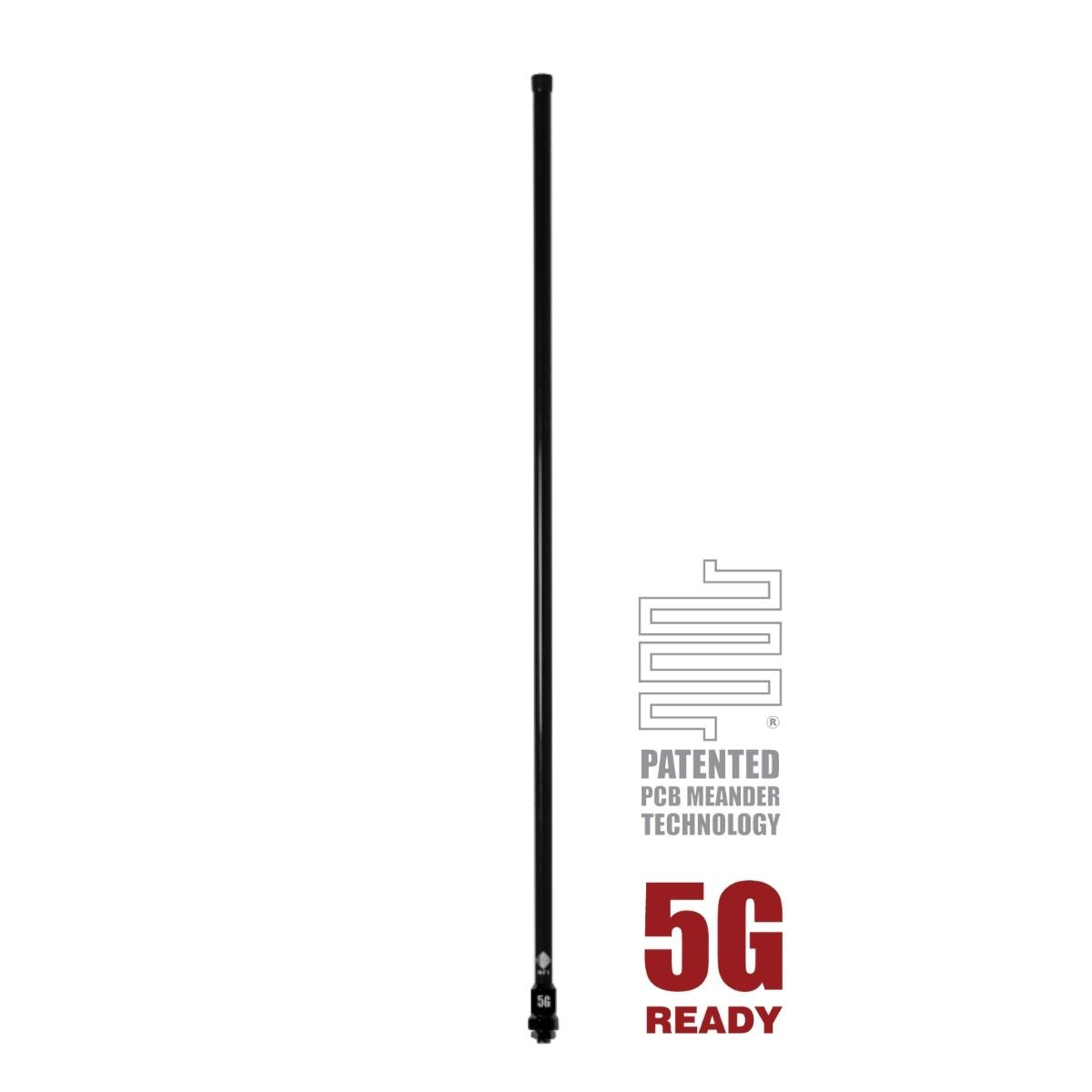

5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) – CD8295 Black
The new CD8200 Series 5G LTE antennas cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) and now the new 5G LTE band (3400-3800 MHz).
Product Documents
Description
The 5G LTE 6.5Bi Collinear Antenna CD8295 is ideal for use with cellular modems & active repeaters, especially when the signal is poor.
The outstanding performance of the CD8200 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern, and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in one unit.
The CD8200 Series is designed for fixed mounting using the ½” 26TPI threaded stud & nut.
Key Features:
• Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
• Ideal for new 5G LTE networks with true multi-band coverage.
• High gain across all bands making it suiting fringe and rural applications.
| Colour | Black |
| Cable Type | RG58 |
| Packaging | Poly Bag |
| Whip Material | Firbeglass |
| Cable And Connector | 5m of RG58 (9006) low loss cable terminated with SMA male connector |
| Connector | SMA(M) |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm hole |
| Tuned bandwidth | Full. |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Operating Temperature Range [°C] | -45 to +85 |
| IP Rating | IP65 |
| Brand | RFI |
| Height [mm] | 806 |
